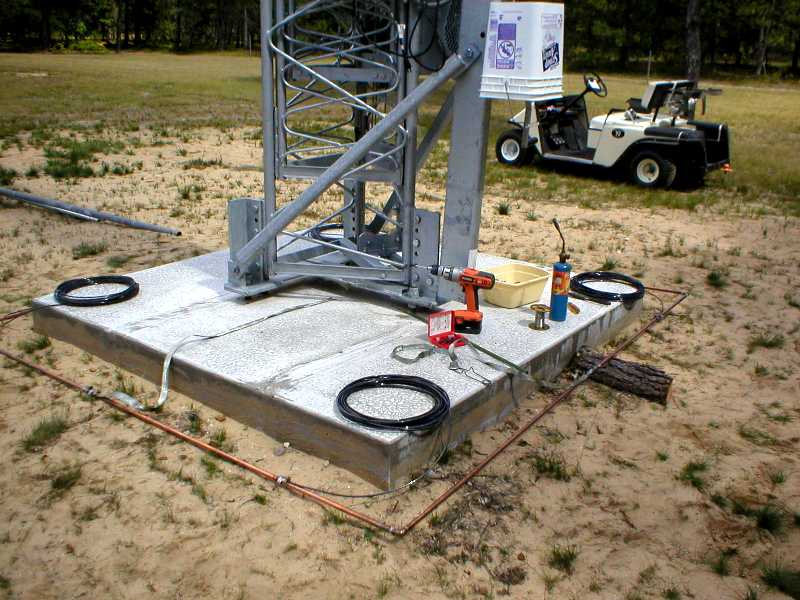

N8JML / KX8D Counterpoise/Lightning Grid
Click on image to expand.

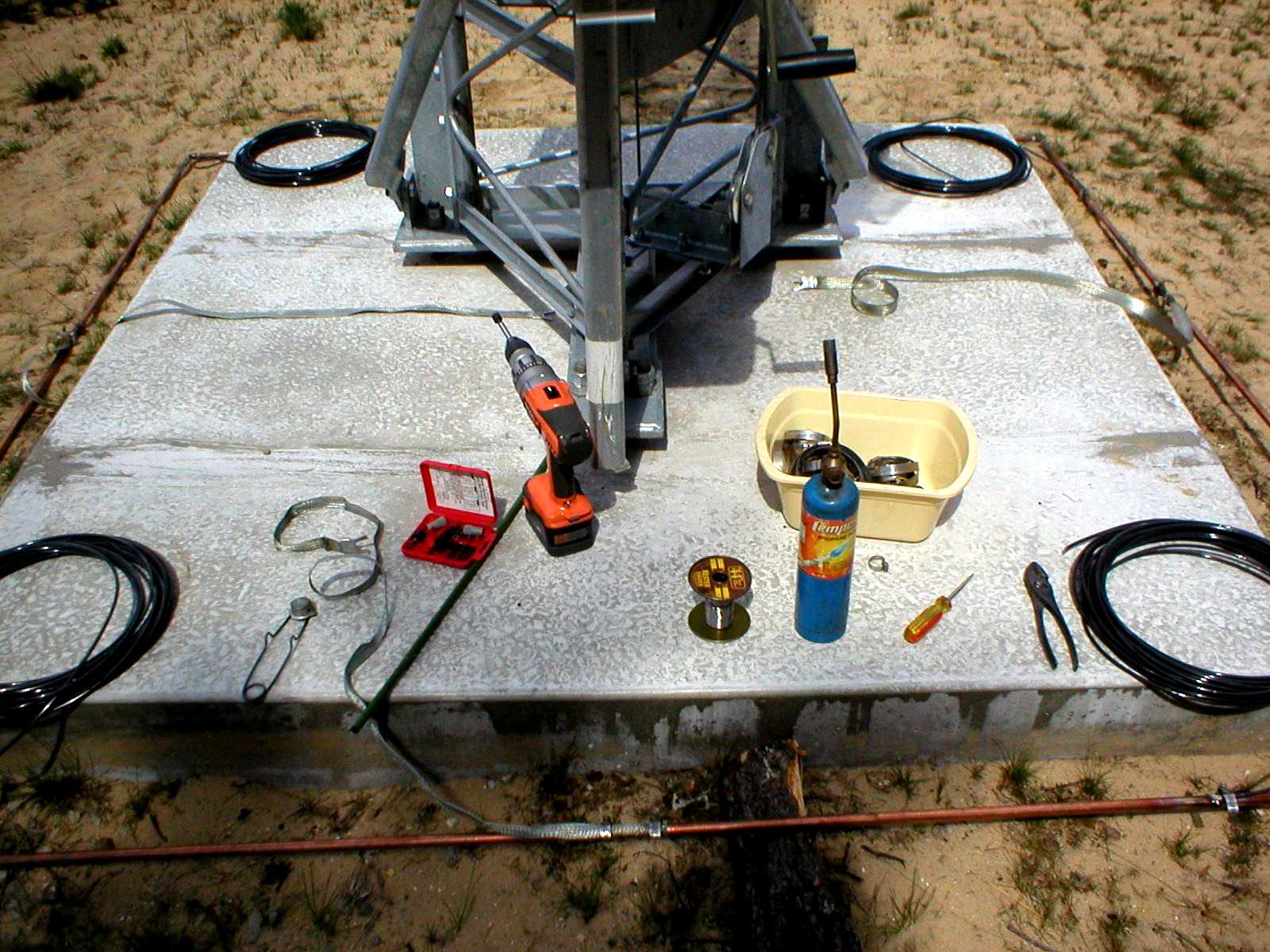

Used 1/2" copper tube for ground bus.

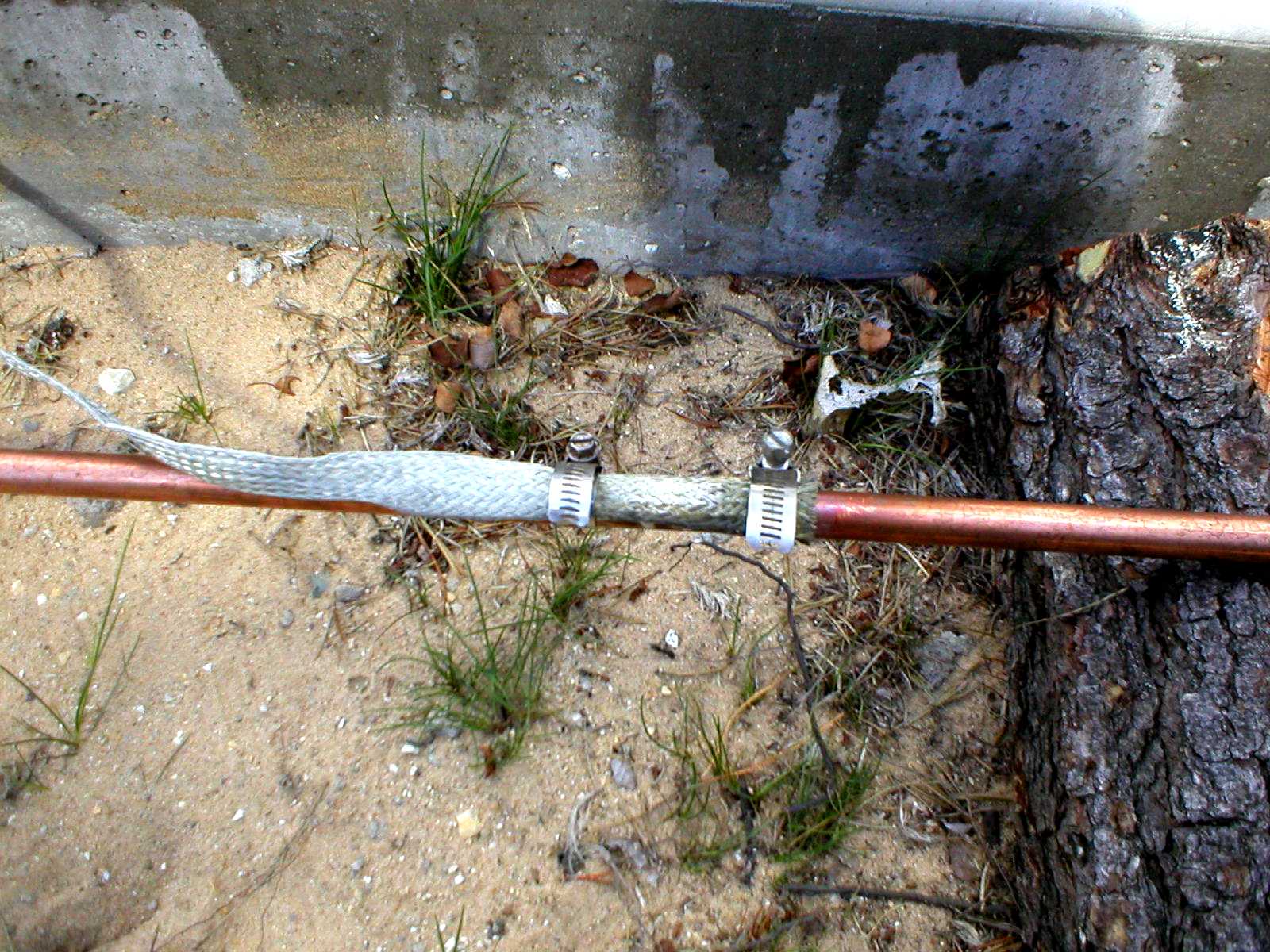

Ensure good contact of braid to bus.

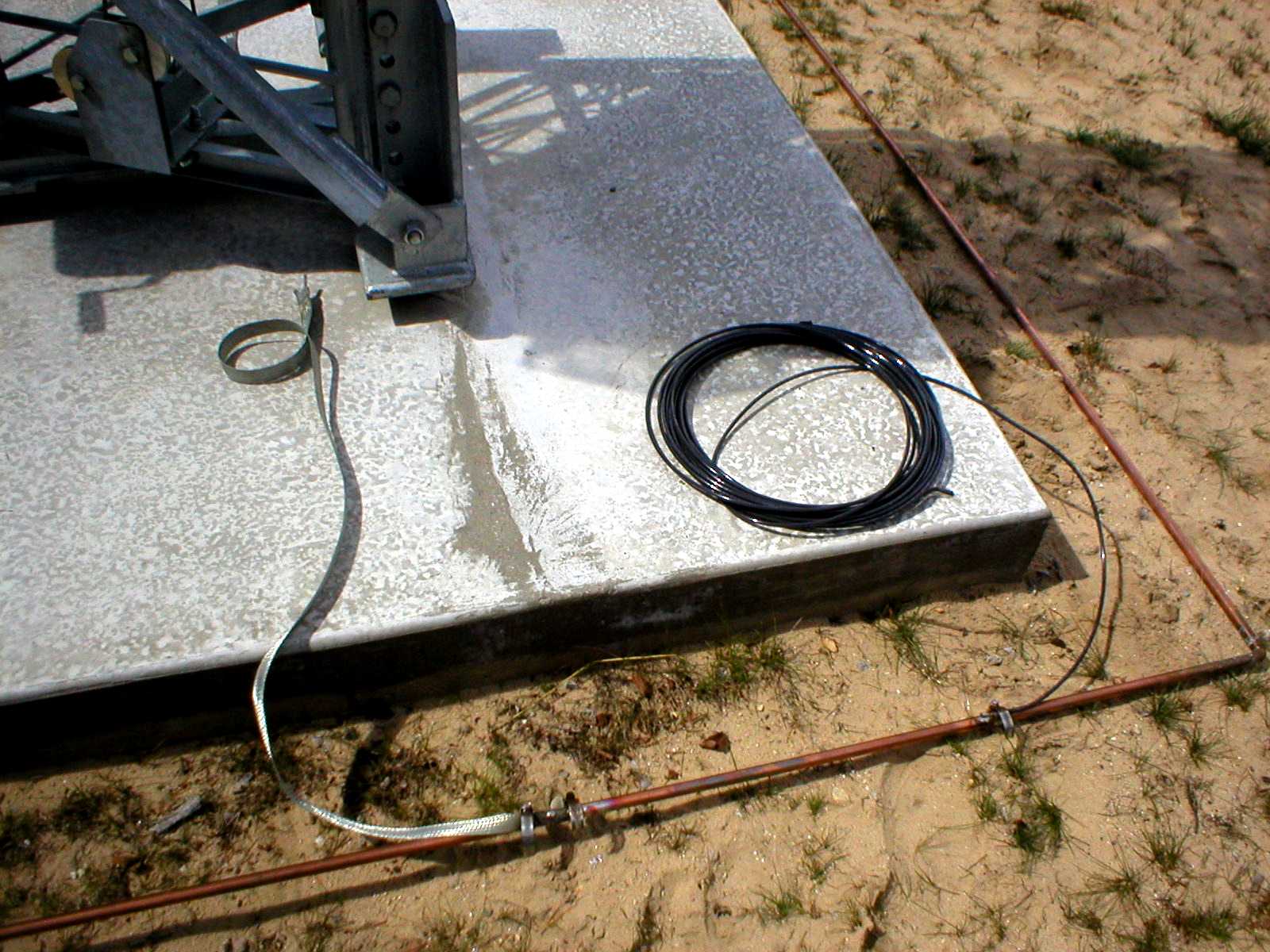

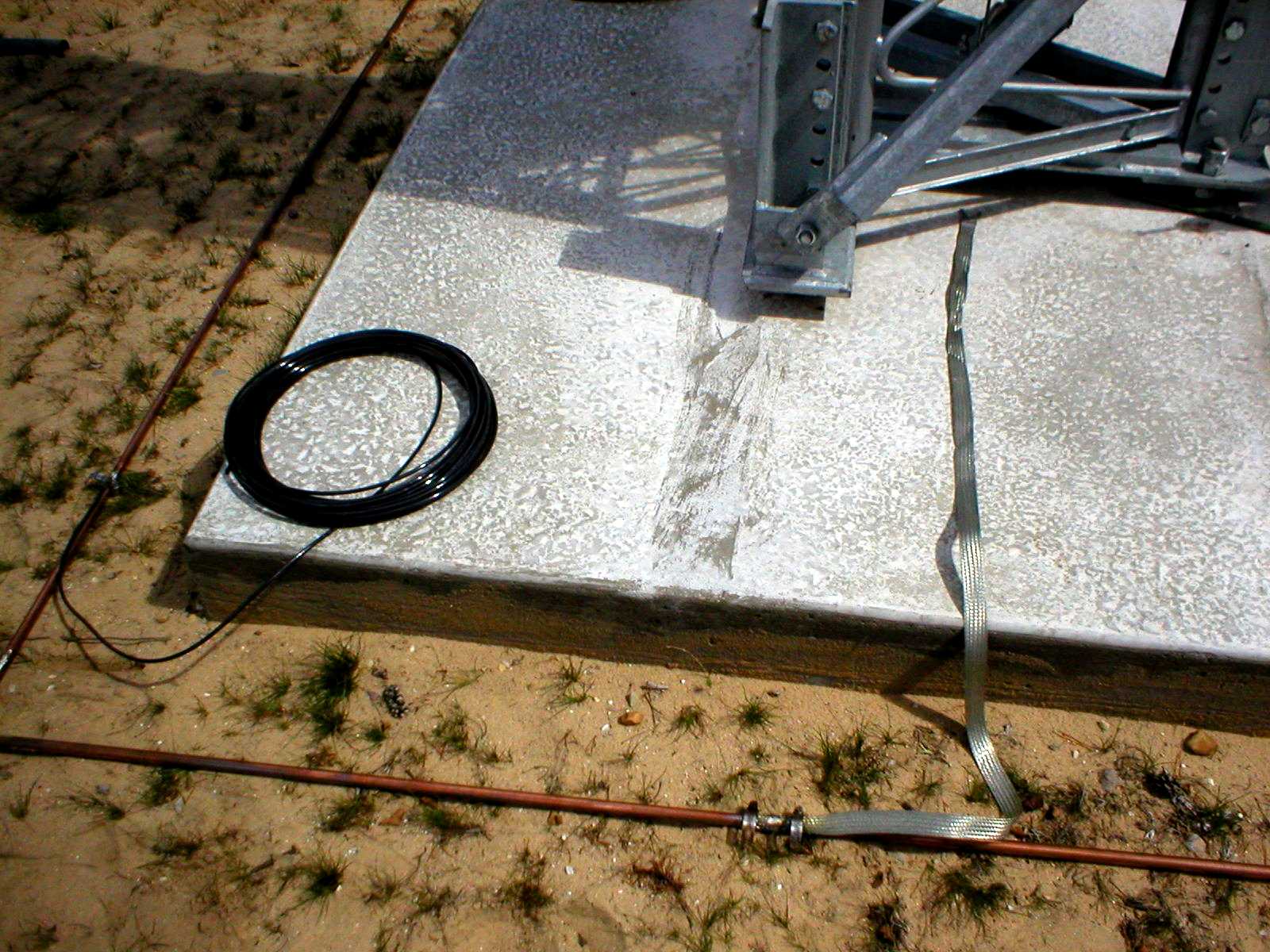

Strap clamped and soldered.

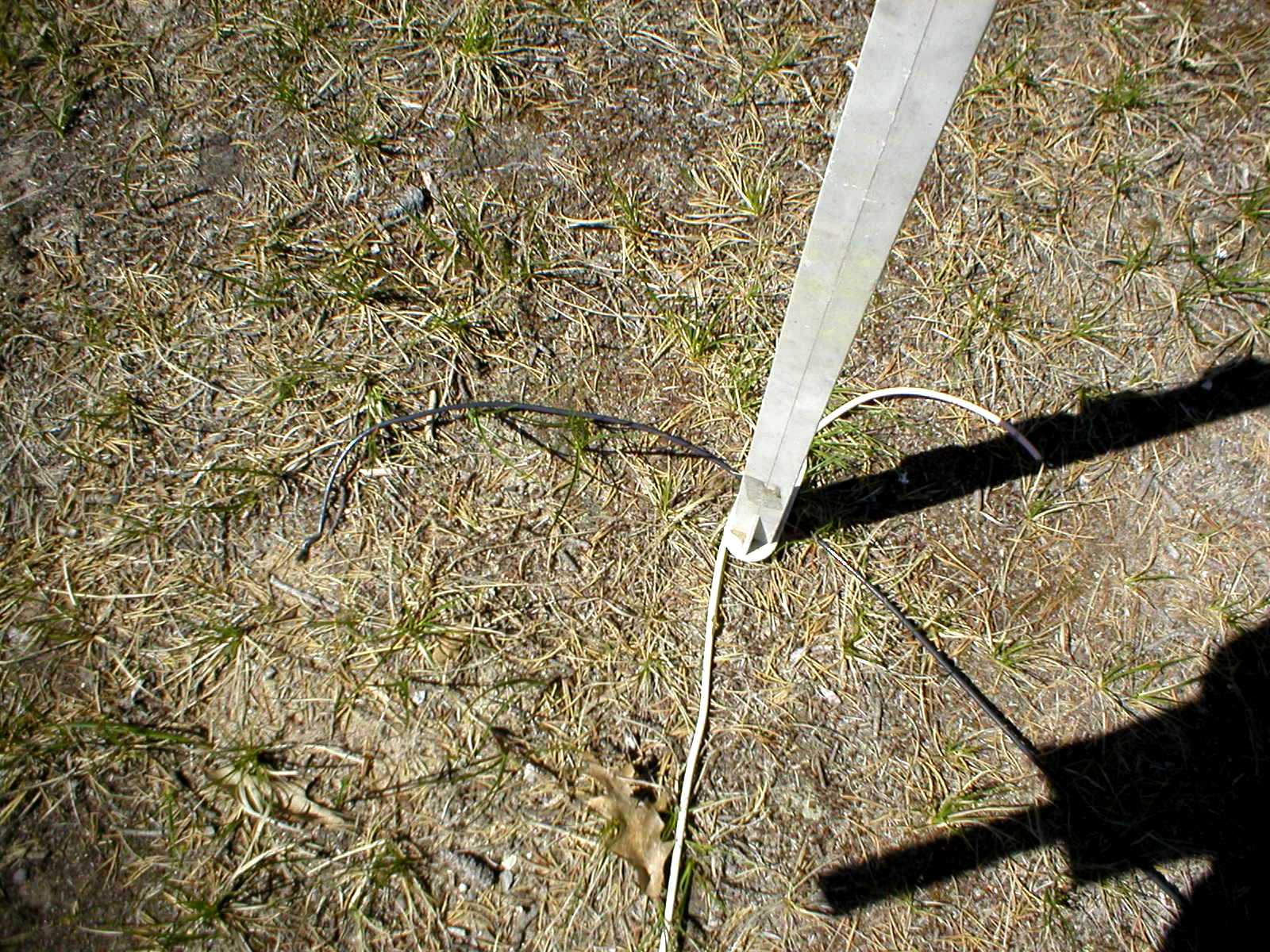

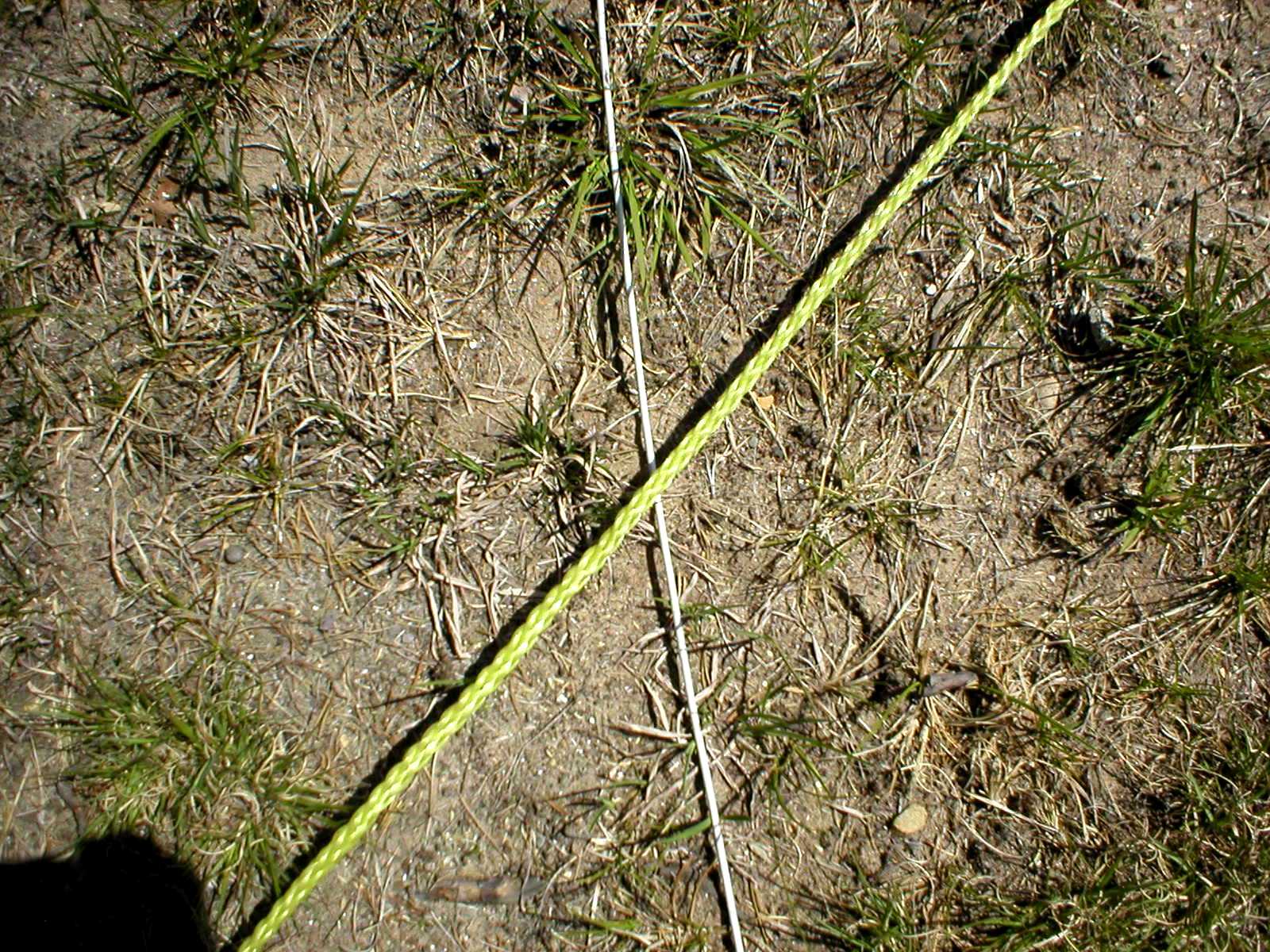

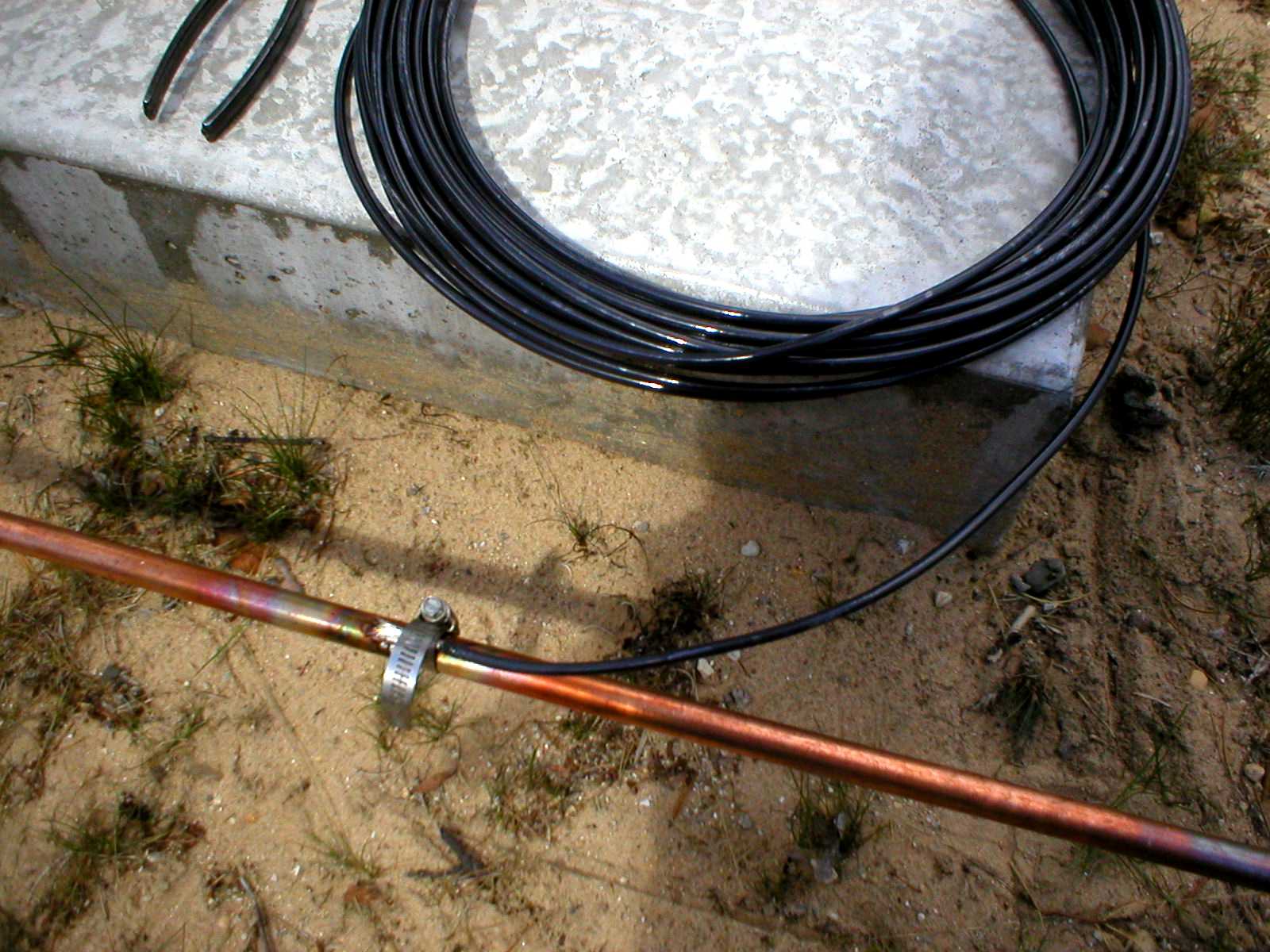

Heavy wire used for lightning grid. Future counterpoise will be #12 soldered
to bus.

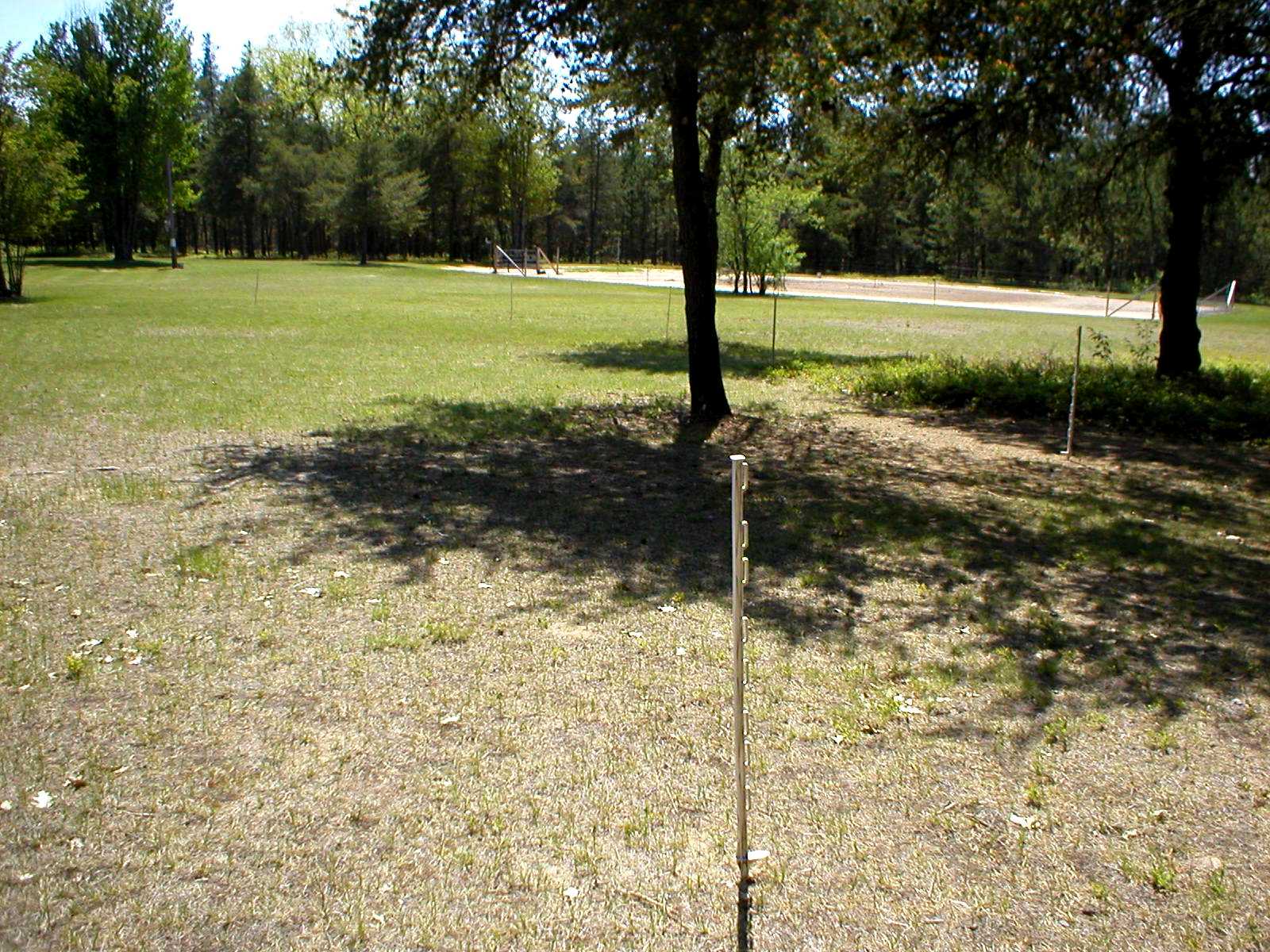

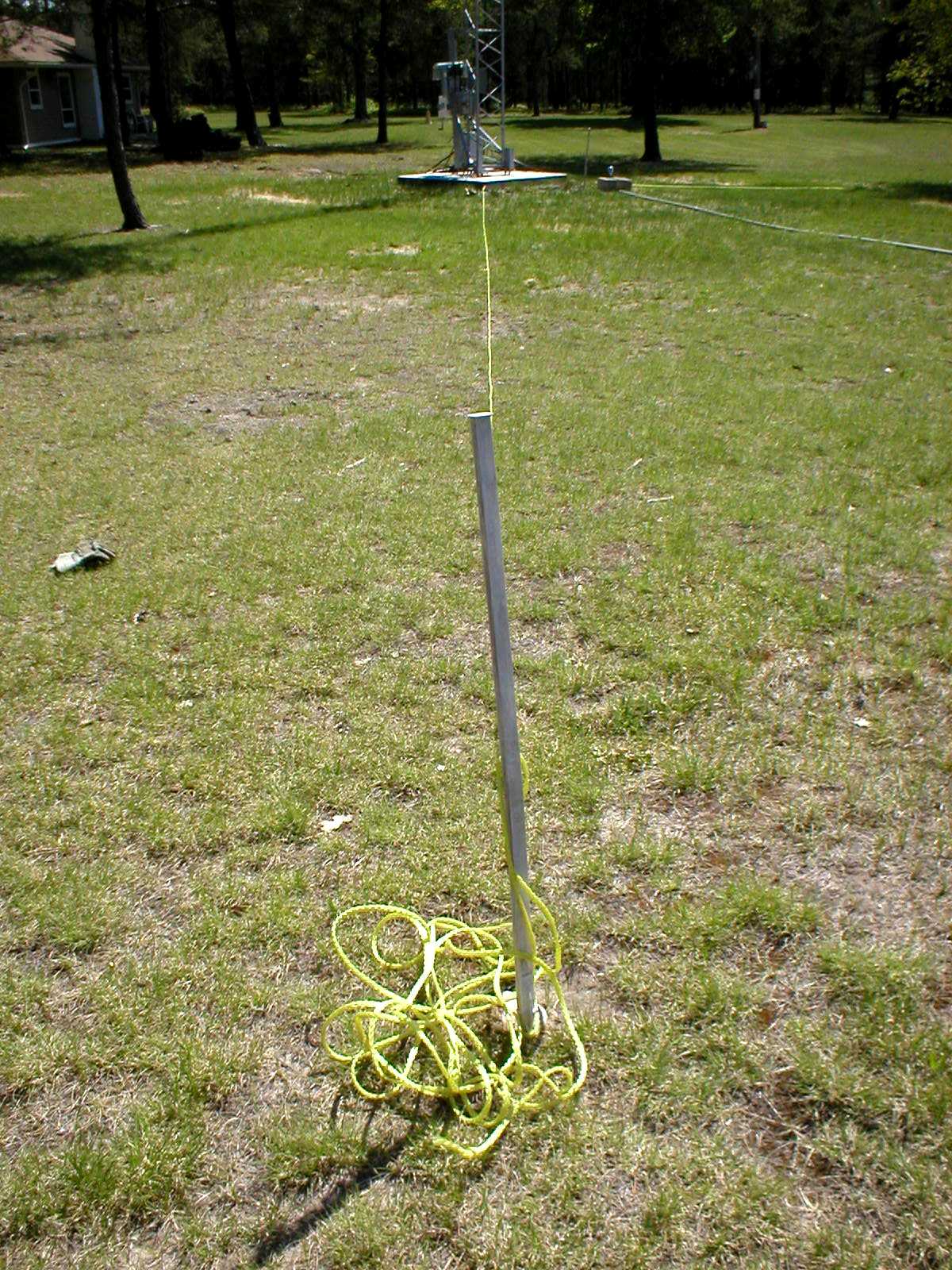

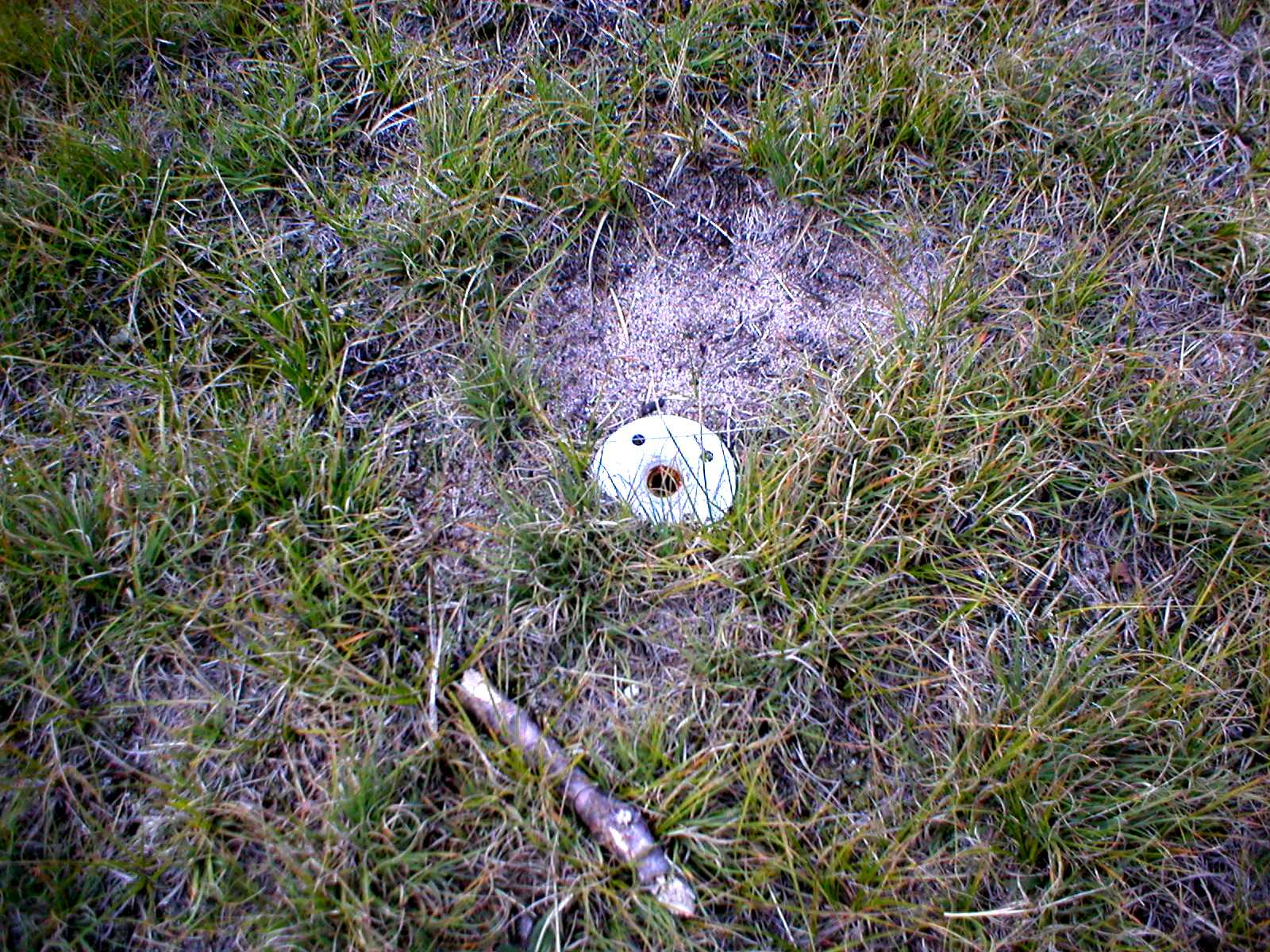

Used 1/2" pipe stub (about 10") and flange to mark grid end and
ground rod.
